Ripley Chamfering Tool
Product Code: US10-7001

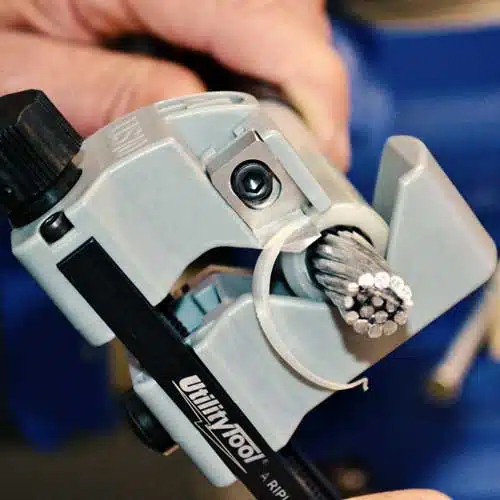

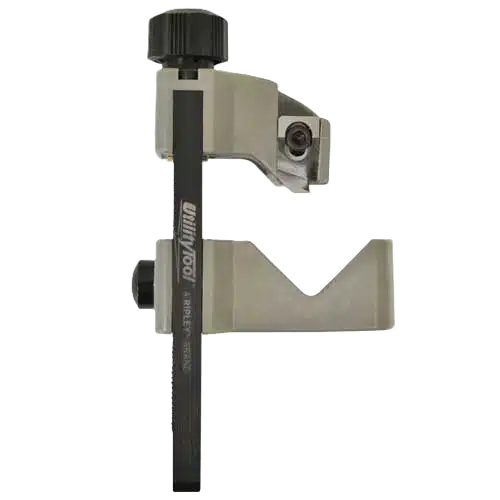

URD Cable Insulation Chamfering Tool for 15-35 kV Medium Voltage Cable. Introducing the innovative US10 Cable Insulation Chamfering Tool that utilizes a size adjustment clamping system to quickly and easily adjust and lock onto the insulation. Its compact, low friction, thermoplastic V-jaw construction and PTFE-coated aluminum frame provides a stable and precise clamping platform in any space.
FEATURES
- Easily adjusts to suit XLPE & EPR insulation materials on 0.5″ to 2.36″ (12.7 mm to 60 mm) cable diameters
- 30 degree or 45 degree angle bevel models perform with a factory-set chamfer depth of 0.075″ (1.905 mm), adjustable from 0″ to 0.150″ (0 mm to 3.81 mm); 15-35 kV
- Equipped with safe, recessed blade to prevent potential injury & blade damage
- Features a replaceable, machined & ground tool steel blade
