Product Specification
⚡ Insulated Ratchet Ring Spanners – ITL 1000V Fast, Safe Fastening

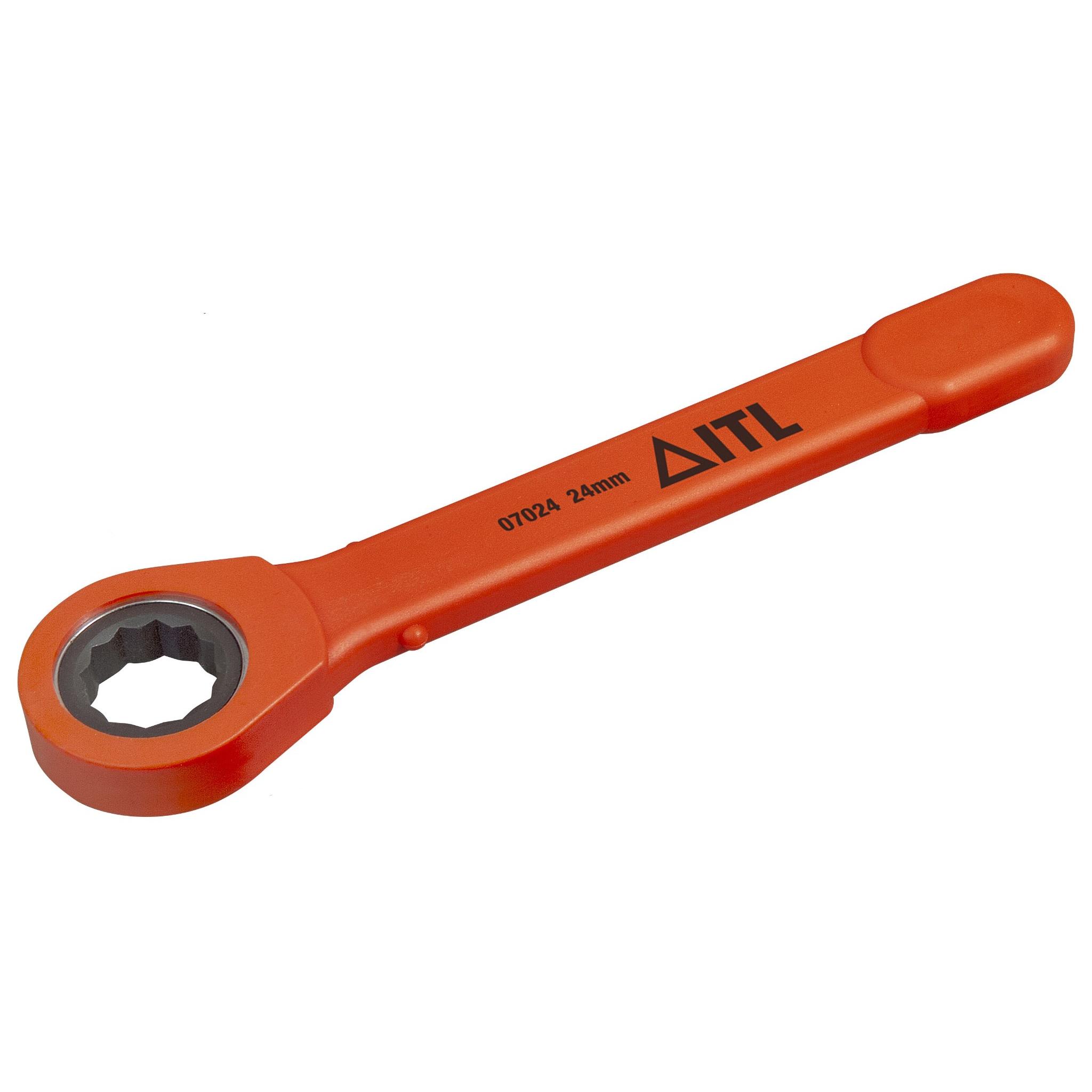

Insulated Ratchet Ring Spanners – ITL 1000V give electricians a quick and safe way to tighten and loosen nuts in live systems. ITL tests every spanner to 1000V and certifies it to IEC 60900. The ratchet mechanism lets you keep the spanner in place while turning, saving time in switchboards and tight enclosures. Bonded insulation forms part of the tool, removing weak spots seen in sleeved spanners.

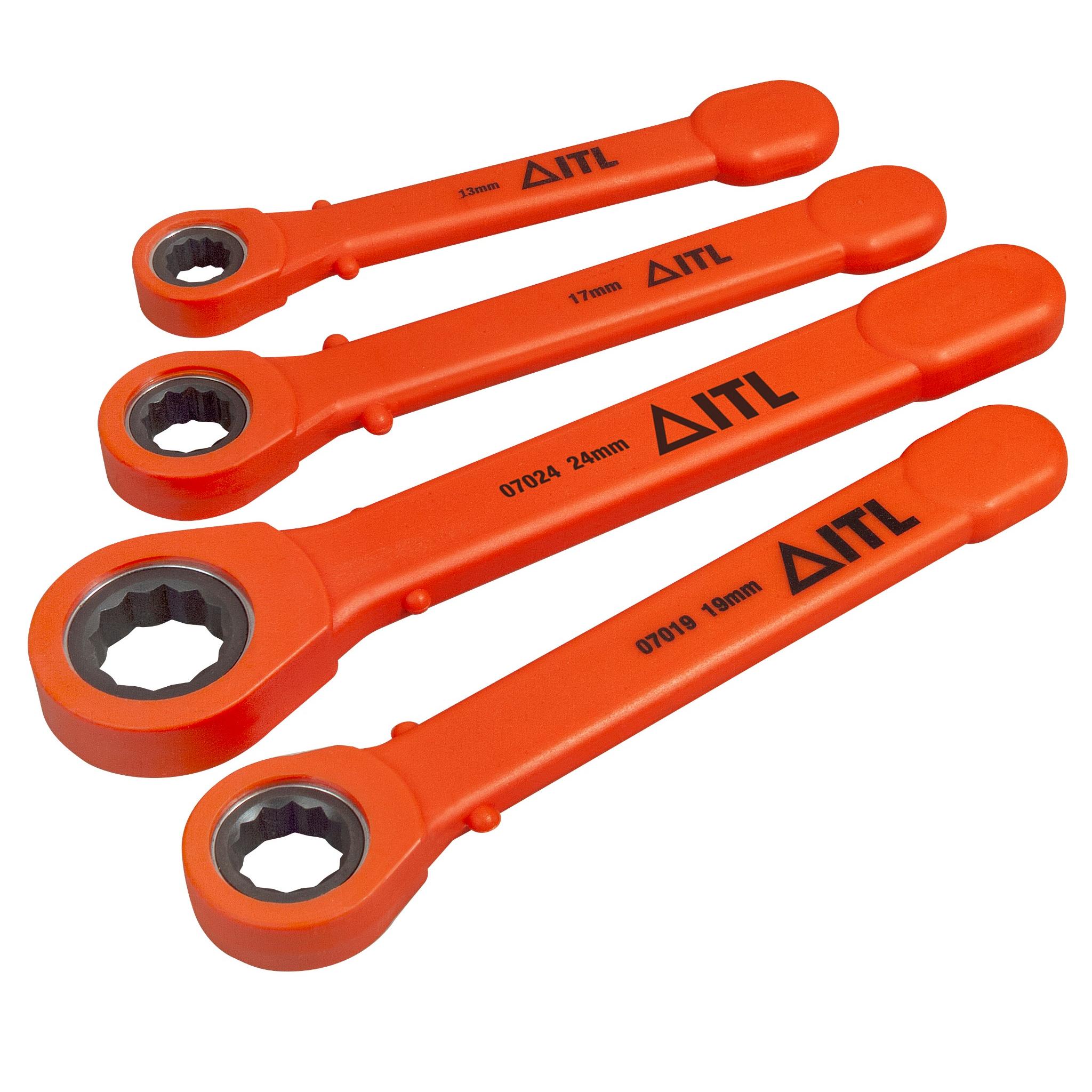

The ITL catalogue includes key metric and imperial sizes:
- Metric: 10 mm, 13 mm, 14 mm, 16 mm, 17 mm, 19 mm, 22 mm, 24 mm
- Imperial: selected sizes such as 3/8″ and 7/16″
🔧 Features & Benefits
- IEC 60900 certified; tested to 1000V
- Ratchet head speeds up fastening
- Bonded insulation resists cracks and slips
- Comfort grips reduce fatigue
- Durable for utility and site use
- Available in singles or trade sets
✅ Applications
- Switchboard assembly and maintenance
- Utility and distribution field service
- Solar installation and industrial work
- Jobs in live low-voltage environments
🌟 Why Choose ITL?
ITL spanners use injection moulded insulation, not sleeves. This process bonds insulation to the steel, creating a single safe tool. Each spanner is batch tested to 10,000V to guarantee compliance for 1000V use. ITL tools are trusted by electricians, utilities, and contractors worldwide. They last longer and perform better in tough site conditions.
These ratchet spanners are part of the Insulated Spanners range. For adjustable grip, see our Insulated Adjustable Spanners. For standard open ends, view our Insulated Open Ended Spanners.
📏 Specifications
- Type: Ratchet Ring Spanner
- Sizes: Metric 10, 13, 14, 16, 17, 19, 22, 24 mm; selected imperial sizes
- Material: Hardened steel with bonded insulation
- Insulation: 1000V rated
- Standard: IEC 60900
- Industries: Electrical, Utilities, Industrial
- Brand: ITL
- Catalogue Reference: ITL Catalogue – Ratchet Ring Spanners (SKUs 07010–07024 metric; 07050–07059 imperial)
❓ FAQs
What metric sizes are offered?
10, 13, 14, 16, 17, 19, 22, and 24 mm.
Do you supply imperial sizes?
Yes, ITL produces select imperial spanners such as 3/8″ and 7/16″.
Are they safe for live work?
Yes. Each spanner is tested to 1000V and certified to IEC 60900.
Why use ratchet spanners?
The ratchet speeds up fastening without removing the tool between turns.
See more tools in our Insulated Hand Tools.
